Coating Thickness Gauge: Your Ultimate Solution for Precision Coating Measurement

UNI-T DFT Meter (dry film thickness meter), is the perfect companion for the automotive car detailing industry.

This advanced gauge is designed to provide precise and efficient coating thickness measurements, ensuring the integrity and quality of your coated materials.


CertificatesCE, UKCA
Measurement range0~1250μm
Resolution0.1μm (0~99.9μm); 1μm (100~1250μm)
Measurement methodSingle/continuous
Measurement modeMAX/MIN/AVG
Metal typeFerrous/ non-ferrous
Display type2-inches TFT LCD (320 x 240 pixels)
Data storage500 groups


LCD brightness controlAuto rotatable screen
Unit conversionAudio alarm
LED alarmPC analysis software
USB communicationQuick test mode
Auto power ofLow battery indication

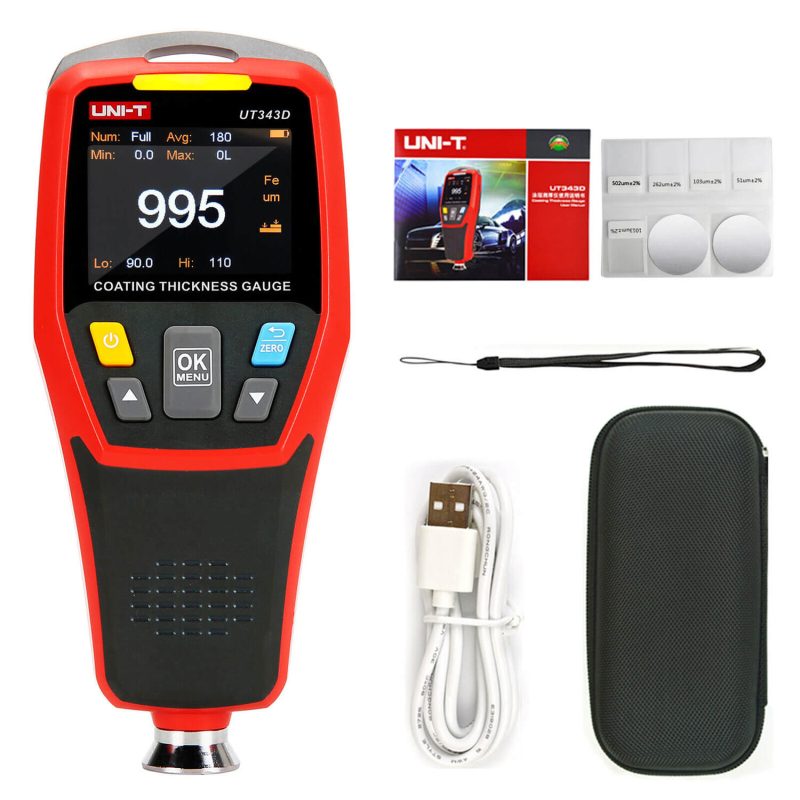

Standard accessoriesMicro USB interface cable, calibration pieces, batteries, cloth bag
Power3V battery (R03) x 2
Display48 x 36mm
Product size153.5 x 64.5 x 41mm
Product net weight175g
Standard individual packingGift box, English manual


Key Features:

  1. 5-Point Decision and Single-Point Decision: The coating gauge thickness meter offers two intelligent measurement modes. The 5-Point Decision mode provides comprehensive measurement data across multiple points, ensuring thorough inspections. Meanwhile, the Single-Point Decision mode is perfect for quick spot checks when time is of the essence.
  2. Zero Calibration and 2-Point Calibration: Achieve the utmost accuracy with ease using zero calibration for precise measurements on your target surface. For even more precision, the 2-Point Calibration mode allows you to calibrate the gauge to specific reference standards, ensuring consistently reliable results.
  3. Durable Sensor Head: Designed for rugged environments, the coating thickness gauge features a robust sensor head that can withstand challenging conditions, ensuring longevity and dependable performance.

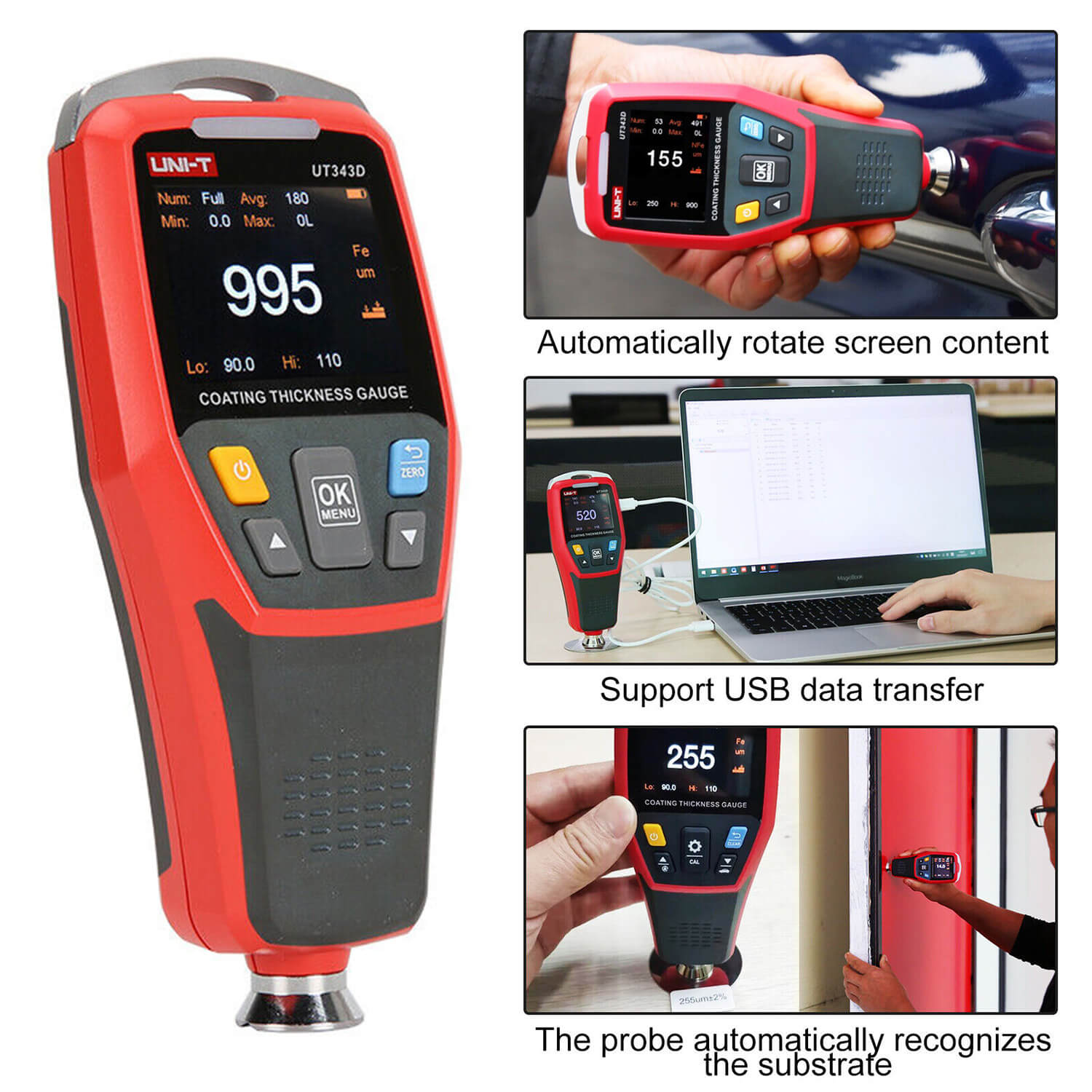

  4. Auto Rotatable Screen: Adapt to your working conditions effortlessly with the auto-rotatable screen. Whether you’re measuring horizontal or vertical surfaces, the screen orientation adjusts accordingly for optimal visibility.
  5. Auto Power Off: Extend your battery life with the convenient auto power-off feature. The gauge will automatically shut down after a period of inactivity, preserving energy for extended usage.
  6. USB Communication: Seamlessly transfer your measurement data to your computer with USB connectivity. This feature simplifies data management and report generation for your records and analysis.
  7. 500 Groups Data Storage: With the capacity to store up to 500 measurement readings, the paint thickness gauge ensures that you have ample space to document your results and track changes over time. This robust data storage capability streamlines your inspection processes.

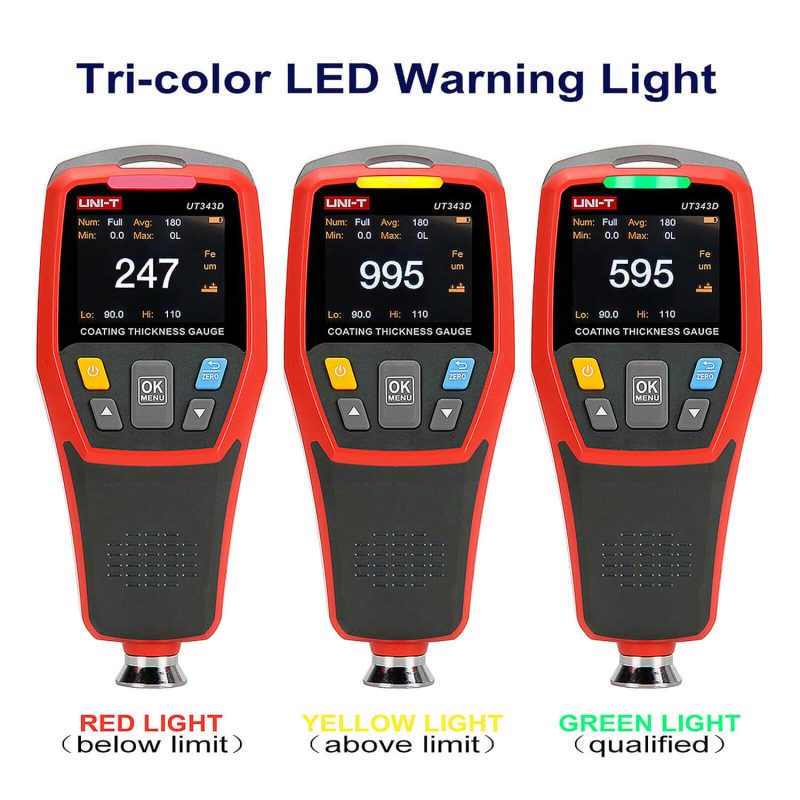

  8. Acousto-Optic Indication: The DFT meter (Dry film thickness meter) provides instant feedback with acousto-optic indication. Audible and visual alerts help you quickly identify measurement results, even in noisy or busy work environments.

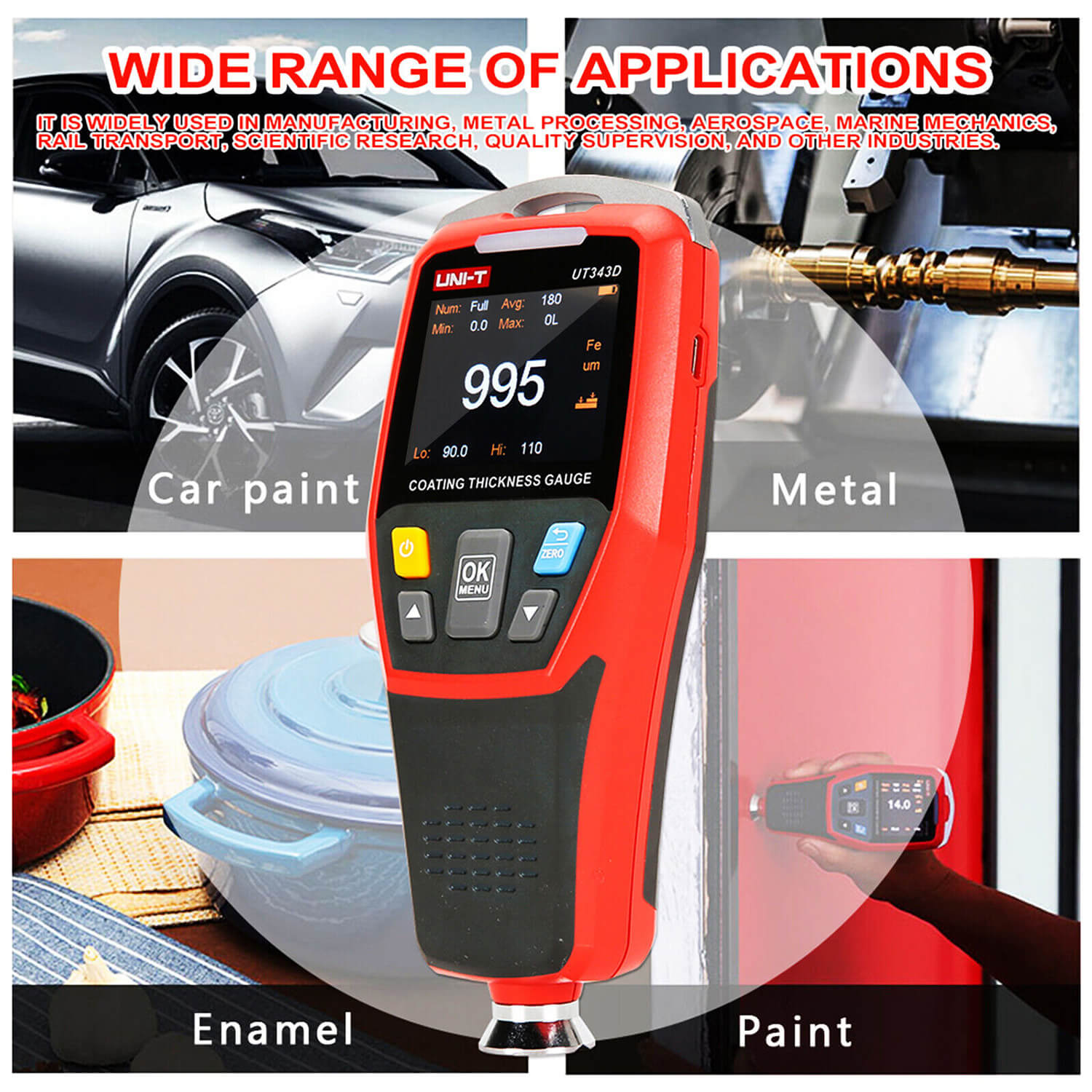

The Coating Thickness Gauge measures coatings on both ferrous and non-ferrous materials. Its Quick Test feature lets you set a thickness range, using a 3-color LED and audio alarm to check if coatings fall within it, boosting efficiency.

The display auto-rotates, and it stores 500 data sets for PC analysis with included software. CE certified for reliability.
